齿轮阻尼器

Unlock Smoothness

Embrace Harmonious Motion.

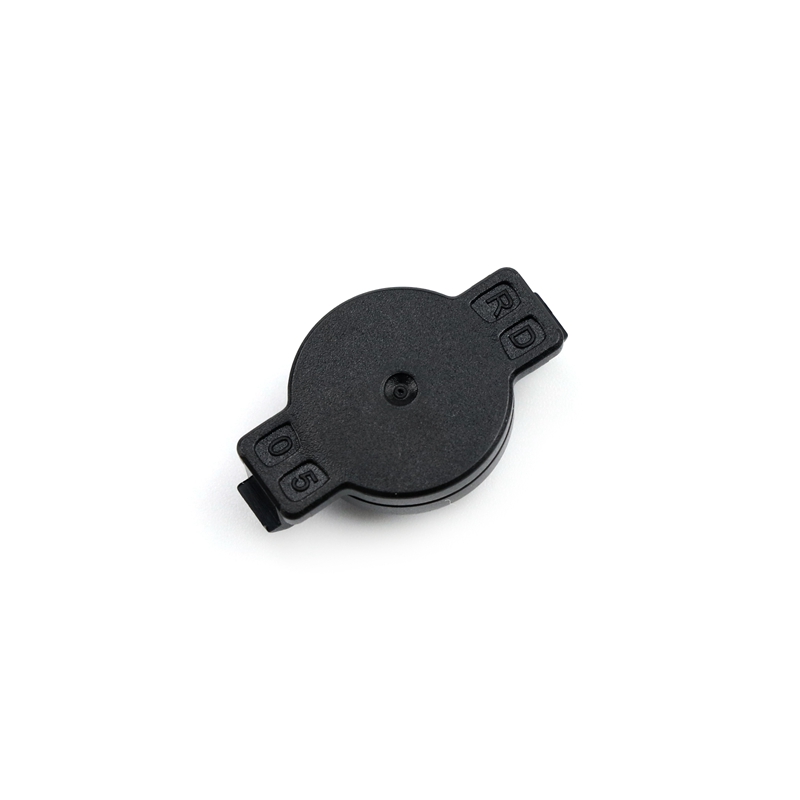

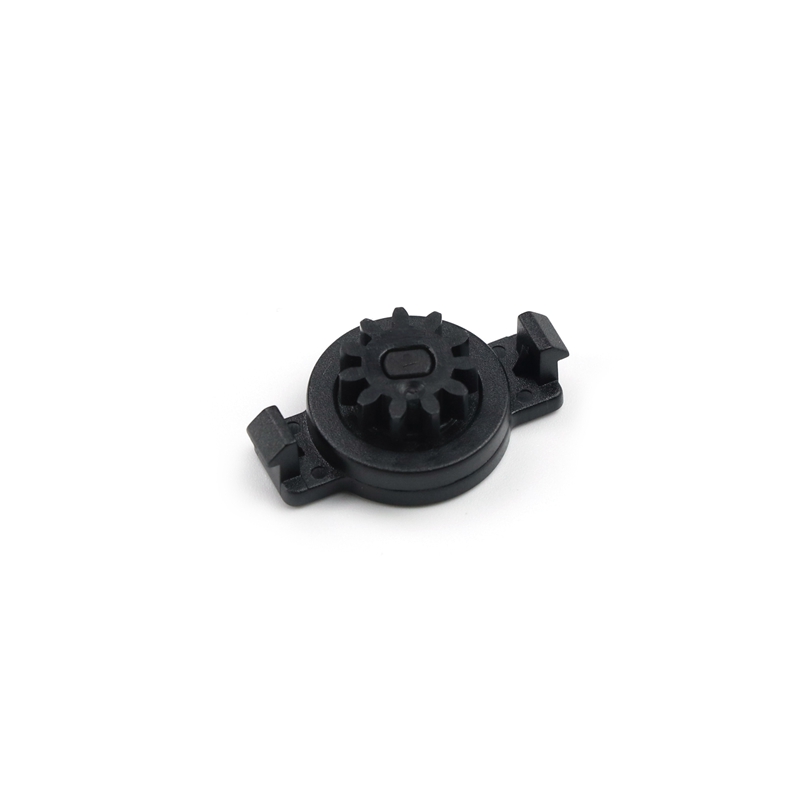

齿轮旋转阻尼器RD-T024适用于家用电器、卫浴、汽车
齿轮旋转阻尼器RD-T024适用于家用电器、卫浴、汽车




  • 齿轮旋转阻尼器RD-T024适用于家用电器、卫浴、汽车
  • 齿轮旋转阻尼器RD-T024适用于家用电器、卫浴、汽车

齿轮旋转阻尼器RD-T024适用于家用电器、卫浴、汽车

Characteristics

SOC Free, Screw, two-way, No angle limit

特征

ROHS环保、螺丝固定、双向、无使用角度限制


扭矩
20 - 400
10
1000
gf.cm

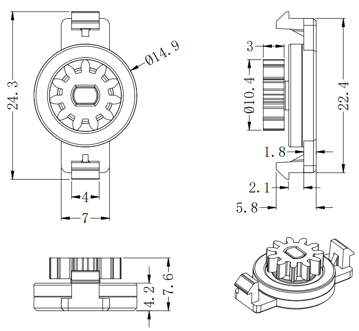

Drawing
Drawing
Component Parts

下座less honorary seat:PC

上盖Upper cover:PC

轴芯RotorPOM

齿轮Gear:POM

胶圈O-RINGVMQ

Oilsilicone oil


Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

环境温度:常温23°

实验方法:向前旋转1.5圈/秒,停止运动1秒,向后旋转1.5圈/秒,停止运动1秒

耐久性能:30000次


Technical Specifications
阻值范围0.2-3Ncm
型号T024
齿数11
直径⊘10.4
模数0.8
压力角20°
材质POM

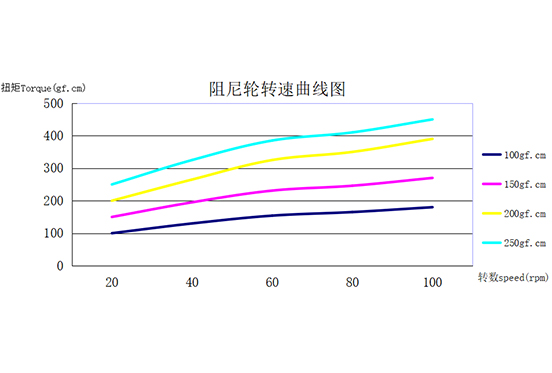

Characteristic(耐久性能)
Characteristic(耐久性能)

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

阻尼器的扭矩(23摄氏度环境温度)随转速的变化而变化。通常情况下,扭矩随着转速的增加而增加,如上图所示

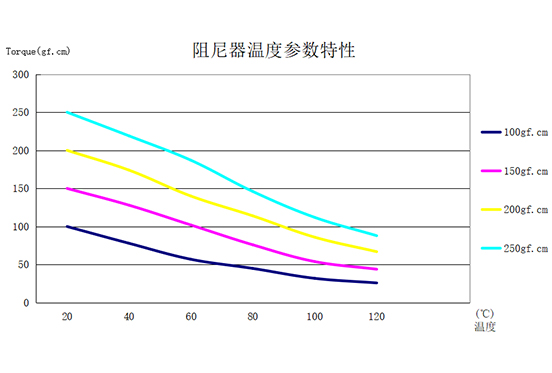

Temperature - torque characteristic (20r/min)(温度-扭矩特性(20r/min))
Temperature - torque characteristic (20r/min)(温度-扭矩特性(20r/min))

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above

阻尼器的扭矩(转速:20r/min) 随环境温度的变化而变化。通常,在较低温度下扭矩增加,在较高温度下扭矩减小,如上图所示
