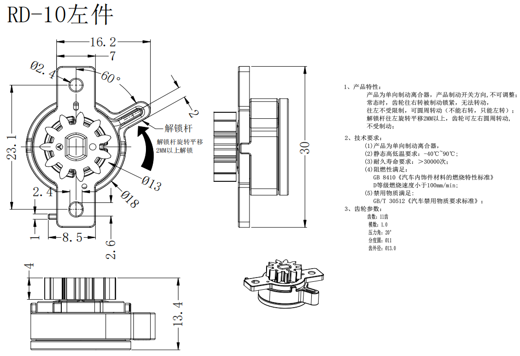

Drawing
Component Parts（部位零件、材质）
下座less honorary seat：PC
上盖Upper cover：PC
轴芯Rotor：POM
齿轮Gear：POM
钢圈Steel ring：Stainless steel
弹簧spring：Stainless steel
Durability（耐久性能）
Ambient temperature: normal temperature 23°
Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s
Lifetime: 30,000 times
耐久性能Durability：
环境温度ambient temperature：常温23°
实验方法Conditions：向前旋转1.5圈/秒，停止运动1秒，向后旋转1.5圈/秒，停止运动1秒
耐久性能Lifetime：30000次
Technical Specifications（技术规格）
| Type | 11 | / | / | / |
| Number of teeth | 11 | / | / | / |
| Tooth width | ||||
| Product height | 13.4 | |||
| Module | 1.0 | / | / | / |
| Pitch circle diameter | Φ13 | |||
| Pressure angle | 20° | / | / | / |
| Material | POM | / | / | / |
