齿轮 桶型 轴阻尼器 RD-T012A汽车安全拉手、顶棚拉手
齿轮 桶型 轴阻尼器 RD-T012A汽车安全拉手、顶棚拉手




  • 齿轮 桶型 轴阻尼器 RD-T012A汽车安全拉手、顶棚拉手
  • 齿轮 桶型 轴阻尼器 RD-T012A汽车安全拉手、顶棚拉手

齿轮 桶型 轴阻尼器 RD-T012A汽车安全拉手、顶棚拉手

Characteristics

SOC Free, two-way, No angle limit

特征

ROHS环保、螺丝固定、双向、无使用角度限制


扭矩
150 - 800
100
1500
gf.cm

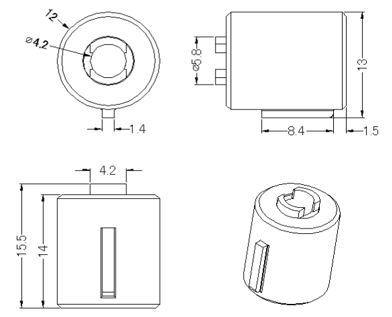

Drawing
Drawing
Component Parts

下座less honorary seatPC

上盖Upper coverPC

轴芯RotorPOM

胶圈O-RINGSilica gel

Oilsilicone oil




Durability(耐久性)

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30,000 times

环境温度:常温23°

实验方法:向前旋转1.5圈/秒,停止运动1秒,向后旋转1.5圈/秒,停止运动1秒

耐久性能:30000次

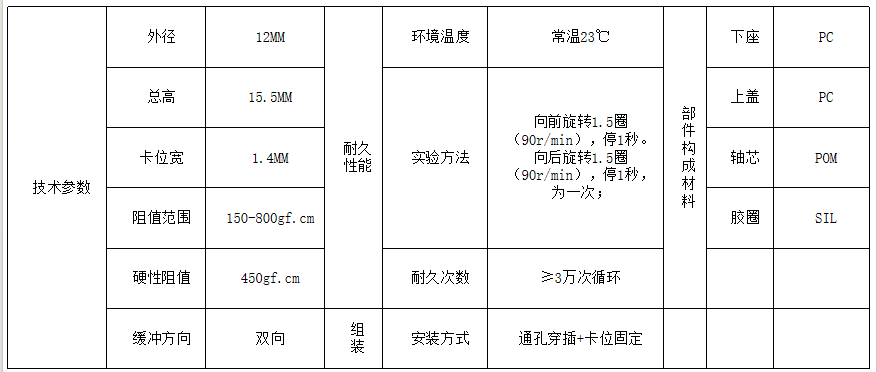

Technical Specifications
Characteristic(耐久性能)
Characteristic

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

阻尼器的扭矩(23摄氏度环境温度)随转速的变化而变化。通常情况下,扭矩随着转速的增加而增加,如上图所示


Temperature - torque characteristic (20r/min)(温度-扭矩特性(20r/min))
Temperature - torque characteristic (20r/min)(温度-扭矩特性(20r/min))

The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above

阻尼器的扭矩(转速:20r/min) 随环境温度的变化而变化。通常,在较低温度下扭矩增加,在较高温度下扭矩减小,如上图所示
